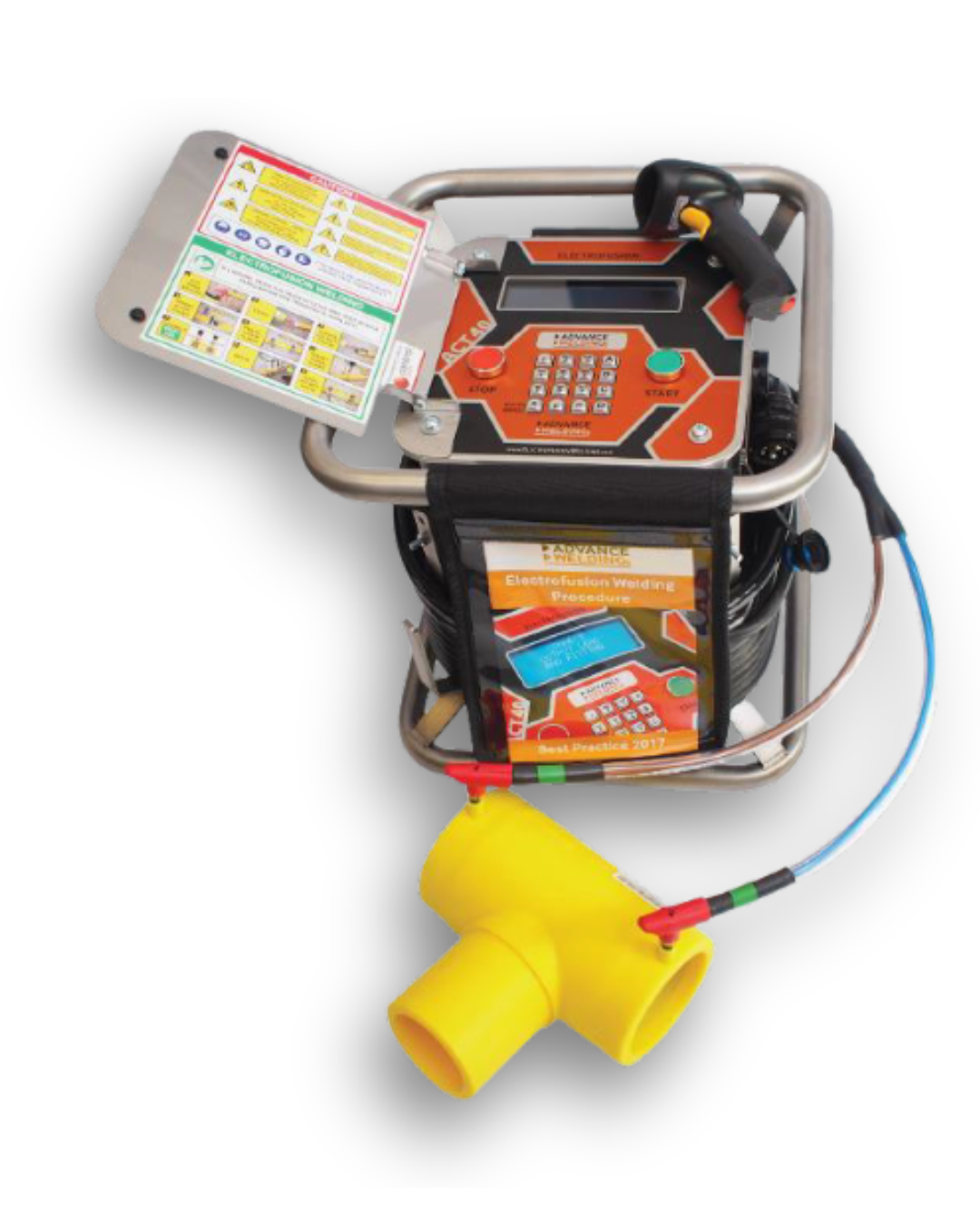

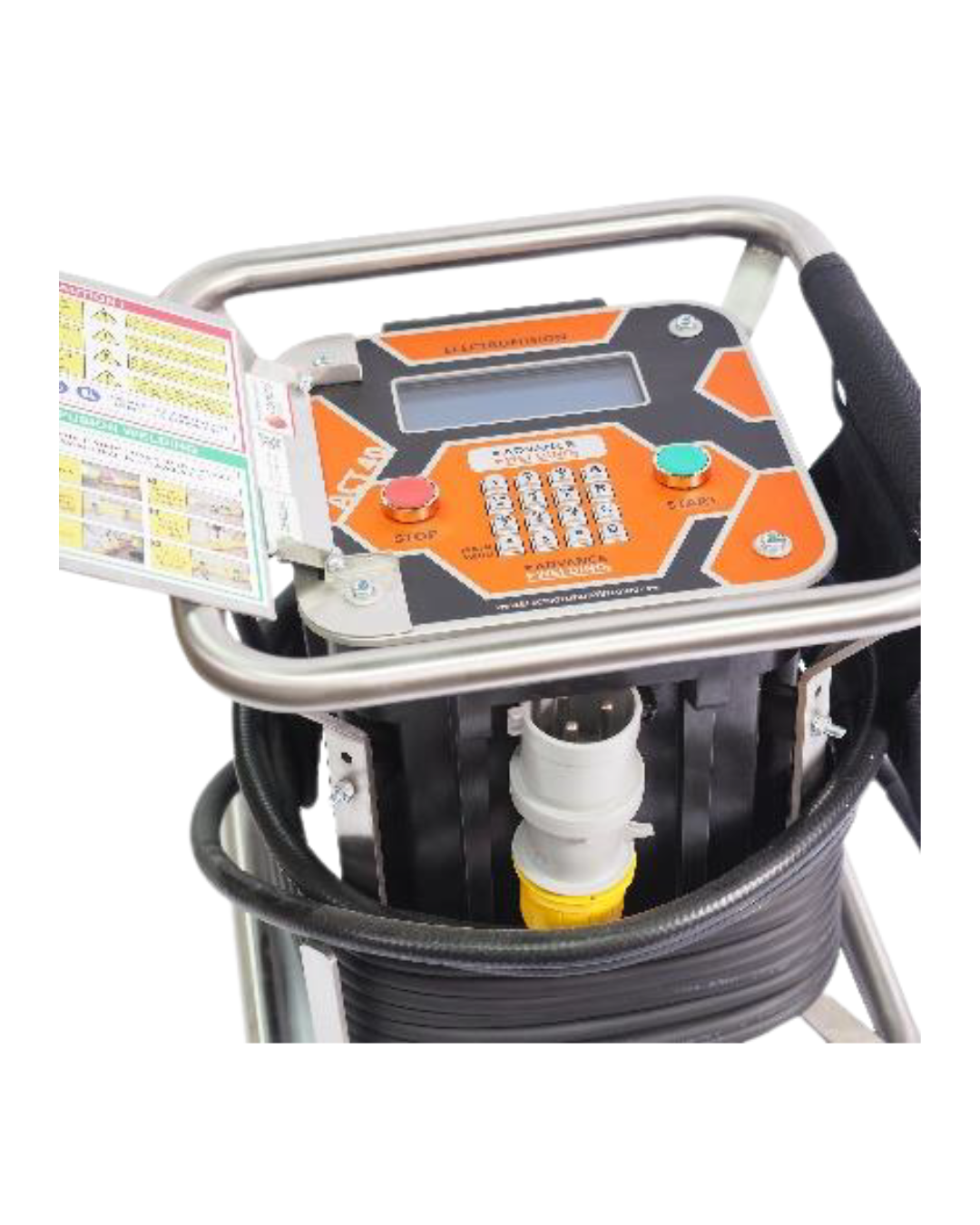

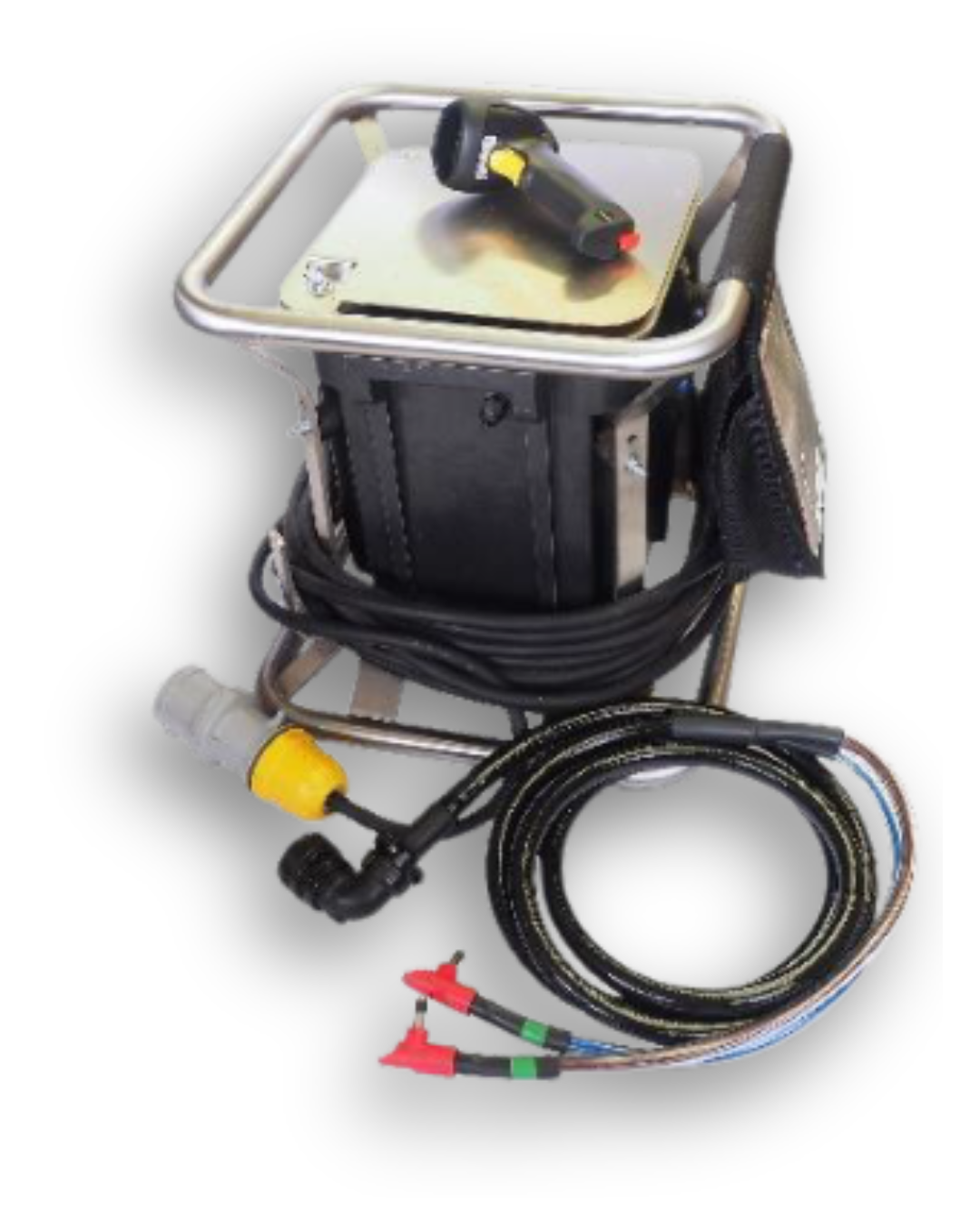

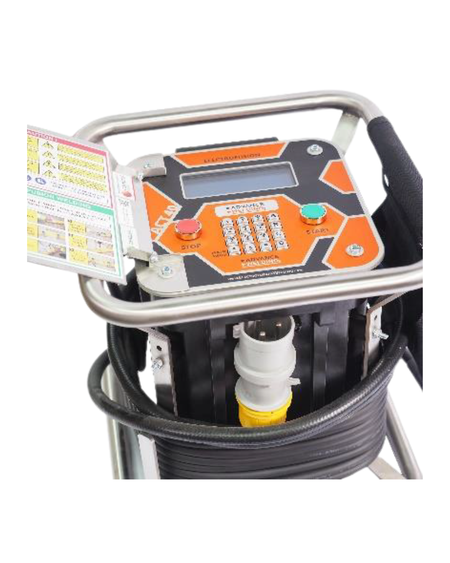

ACT 40V Electrofusion Control Box
The ACT 40V Electrofusion Control Box is a dependable, high-performance welding unit designed for electrofusion of PE and PP pipe systems across a wide range of applications. Engineered for durability and ease of use, it delivers consistent, controlled voltage output for reliable welds in both workshop and field environments.
Suitable for pipe diameters from 16mm to 630mm (and up to 710mm depending on fitting manufacturer), the ACT 40V is built to support low, medium, and high-pressure systems. Its robust design and intuitive operation make it a preferred choice for civil construction, pipeline projects, and hire fleets.
With multiple operating modes including Manual, Fusamatic, and Barcode, operators can select the most efficient workflow for the task. A large onboard data log stores over 2000 weld records, easily downloadable via USB for traceability and compliance.
Constructed for demanding site conditions, the unit offers a rugged frame with optional stainless steel construction, ensuring long-term performance in harsh environments.
Key Features
- Welds fittings from 16mm to 630mm (up to 710mm depending on manufacturer)
- Suitable for PE & PP pipe systems (low, medium & high pressure)
- Controlled voltage output from 8V to 48V
- Manual, Fusamatic & Barcode operating modes
- Data logging capacity of 2000+ welds
- USB data download for traceability
- Robust design suited to site and hire environments
- Optional stainless steel lid and frame
- Compatible with constant voltage electrofusion fittings (39.5V typical)
- Manufactured and assembled in the UK
Applications
- Pipeline construction
- Civil infrastructure projects
- Utility installations
- Hire & rental fleets
- Industrial piping systems
Product Datasheet
Download the ACT 40V Electrofusion Control Box Datasheet (PDF).
