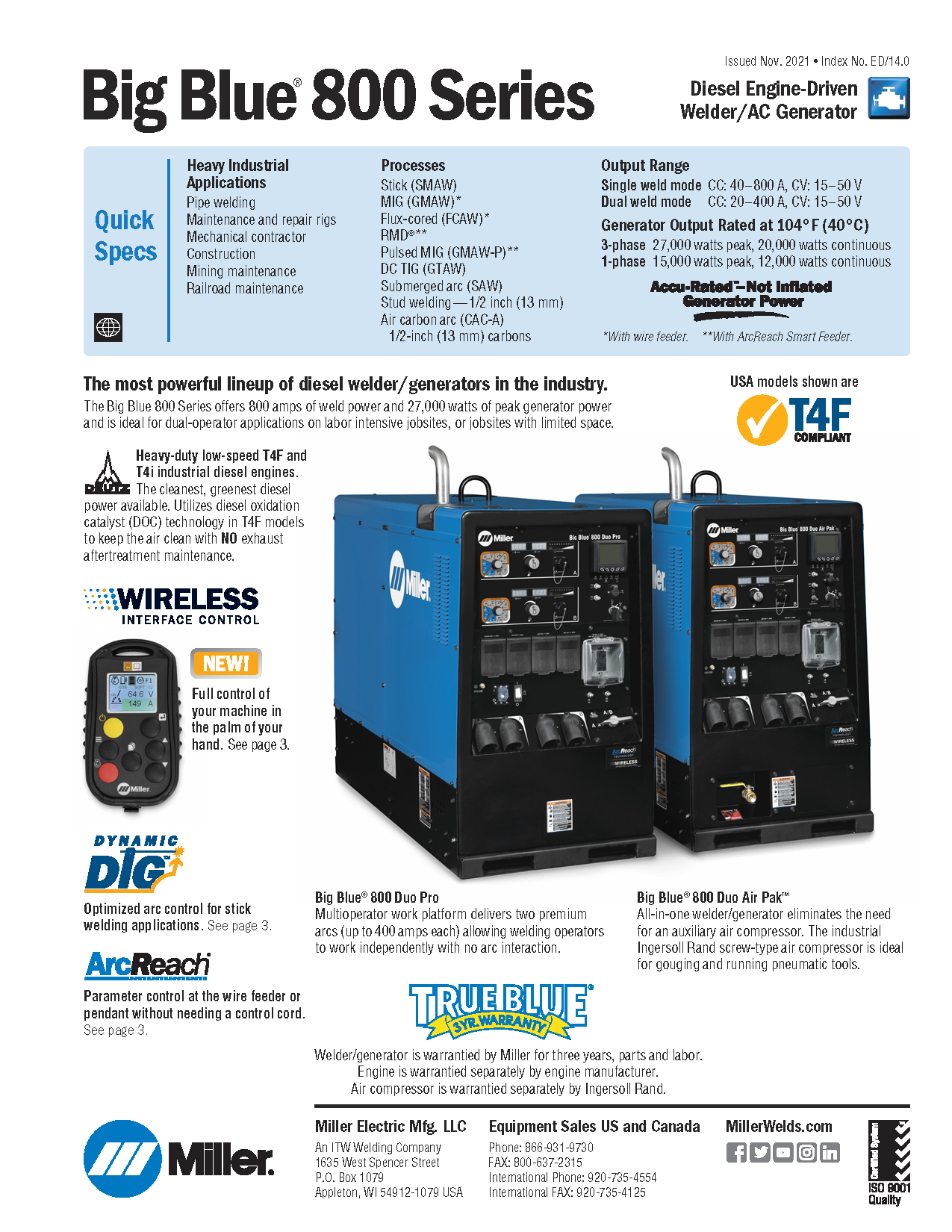

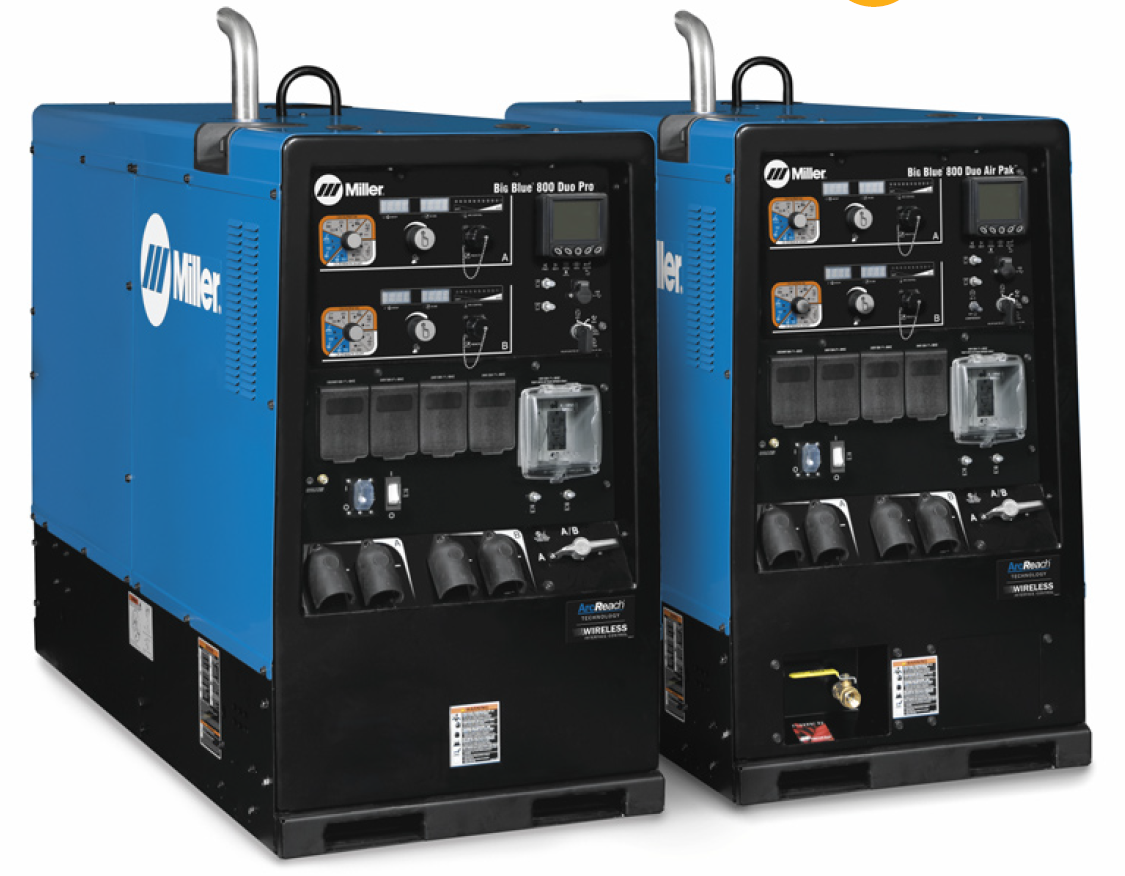

Big Blue® 800 Series

Big Blue® 800 Series

The most powerful lineup of diesel welder/generators in the industry.
The Big Blue 800 Series offers 800 amps of weld power and 27,000 watts of peak generator power and is ideal for dual-operator applications on labor intensive jobsites, or jobsites with limited space.


Heavy-duty low-speed T4F and T4i industrial diesel engines.
The cleanest, greenest diesel power available. Utilizes diesel oxidation catalyst (DOC) technology in T4F models to keep the air clean with NO exhaust aftertreatment maintenance.

Heavy Industrial Applications

  • Pipe welding
  • Maintenance and repair rigs
  • Mechanical contractor
  • Construction
  • Mining maintenance
  • Railroad maintenance

Processes

  • Stick (SMAW)
  • MIG (GMAW)*
  • Flux-cored (FCAW)*
  • RMD®**
  • Pulsed MIG (GMAW-P)**
  • DC TIG (GTAW)
  • Submerged arc (SAW)
  • Stud welding — 1/2 inch (13 mm)
  • Air carbon arc (CAC-A)
    • 1/2-inch (13 mm) carbons

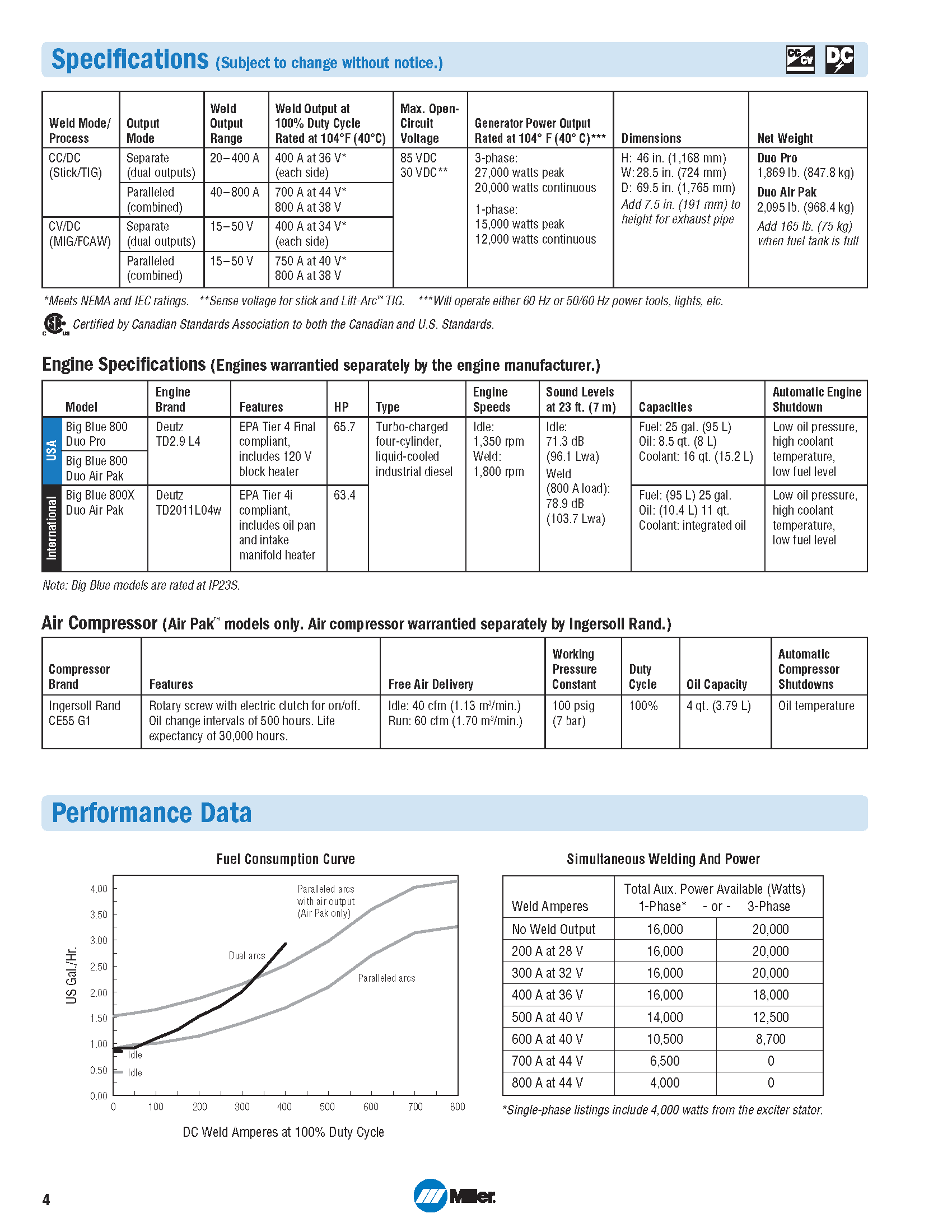

Output Range

  • Single weld mode CC: 40–800 A, CV: 15–50 V
  • Dual weld mode CC: 20–400 A, CV: 15–50 V
  • Generator Output Rated at 104°F (40°C)
  • 3-phase 27,000 watts peak, 20,000 watts continuous
  • 1-phase 15,000 watts peak, 12,000 watts continuous
