HTL Dedicated Square Drive Wrench

REQUEST A QUOTE

Need more info?

To download the product datasheet, please see the description below. For guidance or more information, contact our friendly sales team.

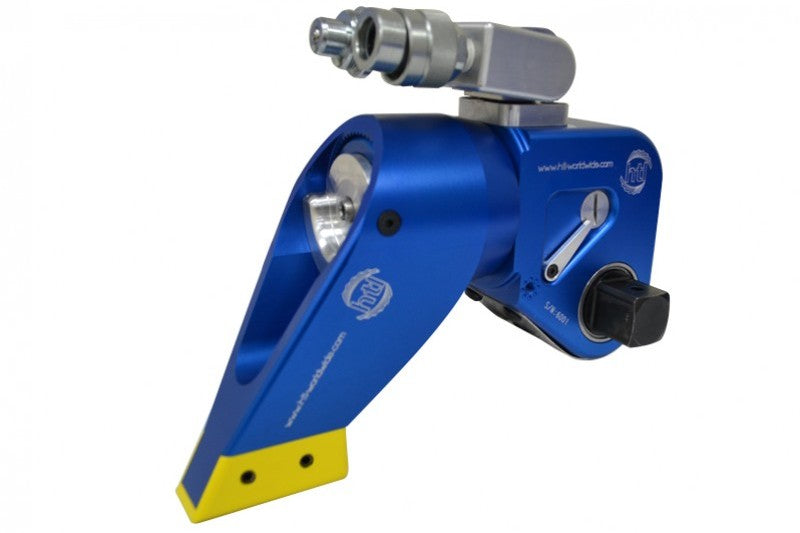

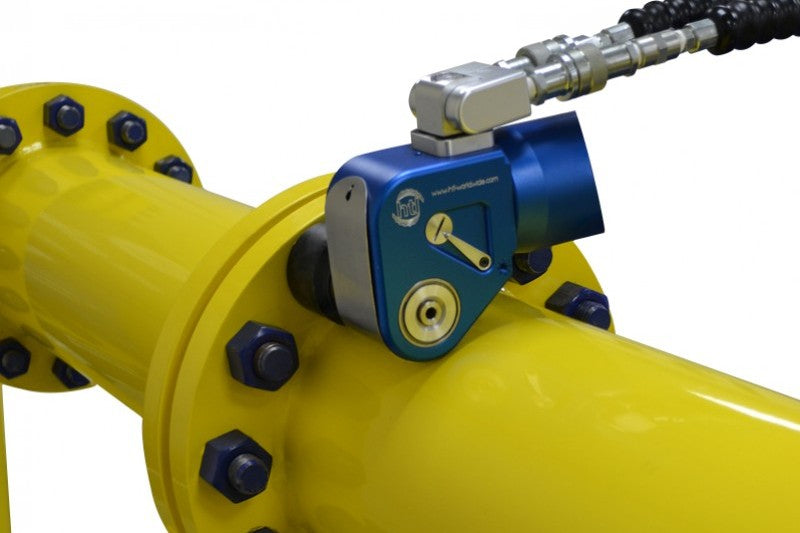

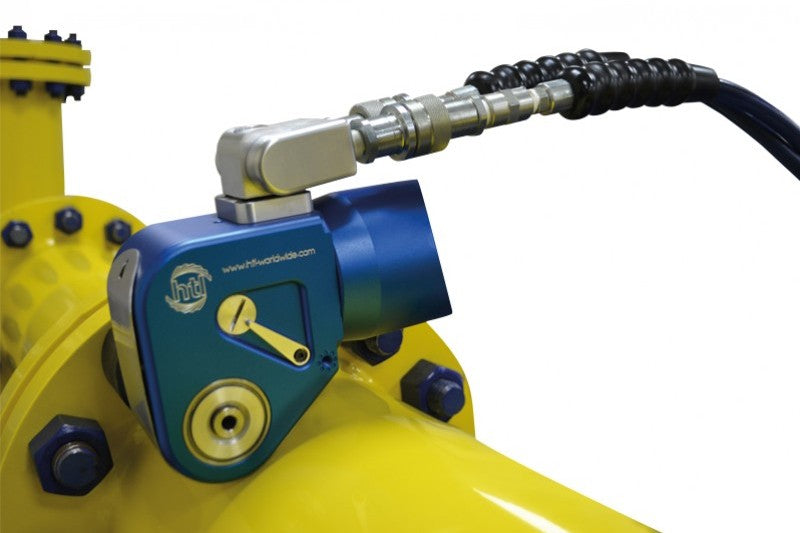

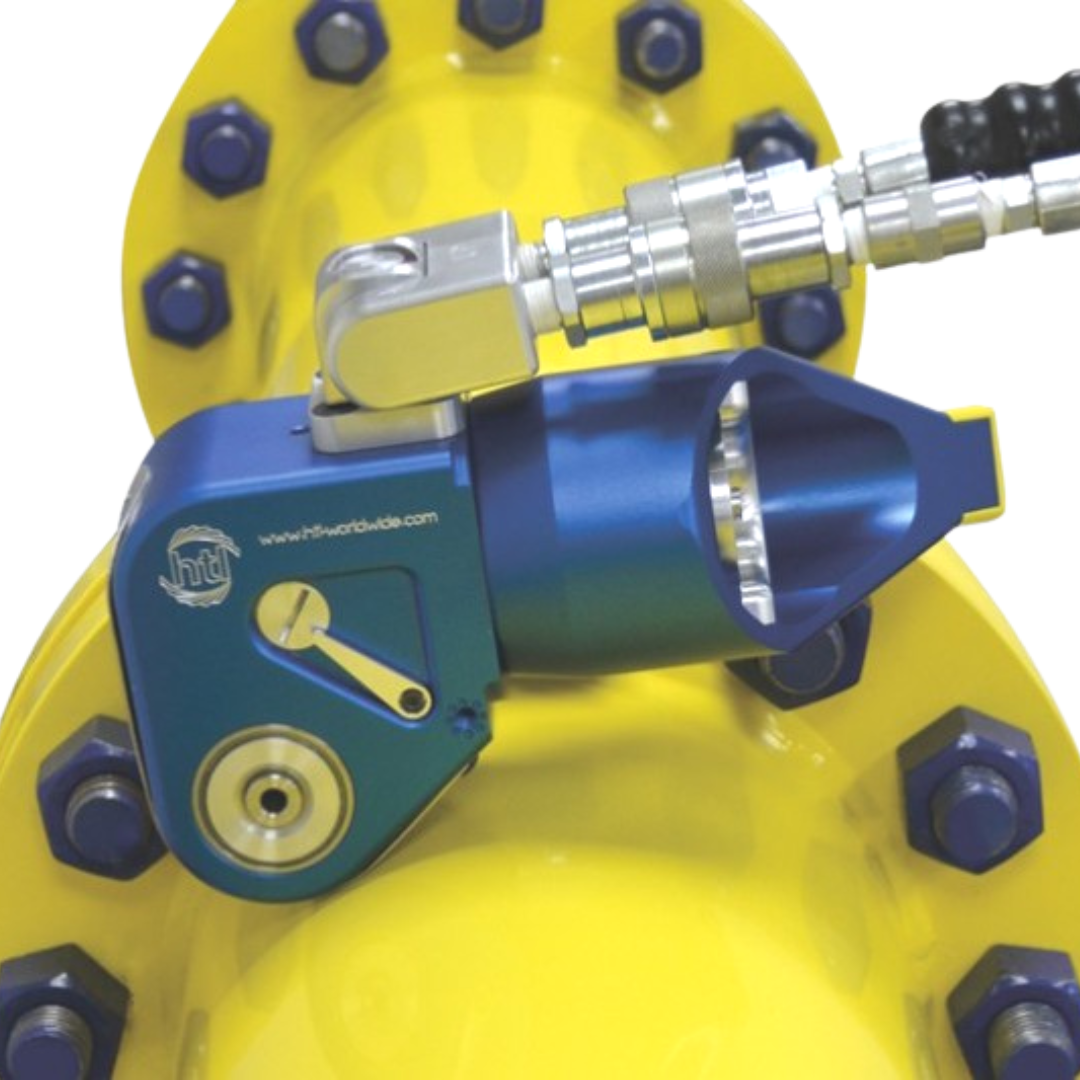

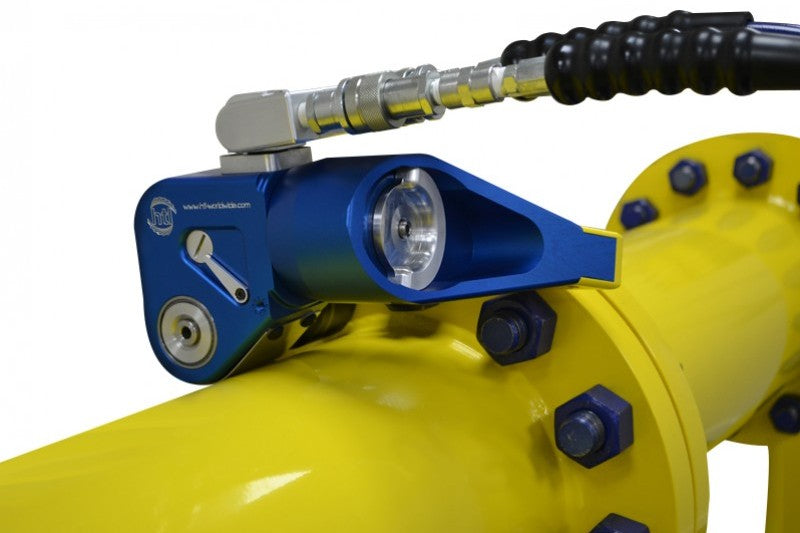

The Dedicated Square Drive Torque Wrench has been designed to offer optimum performance levels for both tightening and loosening nuts and bolts. The robust and durable design has been manufactured to deliver extreme versatility and ease of operation and can be used in conjunction with standard impact sockets from ¾” to 2 ½” square drive. A range of direct hex drive adaptors are also available. The range also features a 360 x 180 degree uni-swivel which prevents hose kinking and allows it to be used in highly confined areas. Providing you with the utmost accuracy, the Dedicated Square Drive range is unrivalled due to its lightweight yet resilient design. It truly is the perfect addition to your tool kit!

Features & Benefits

  • Models from 200 lb.ft to 25,890 lb.ft, 271 Nm to 35,096 Nm
  • 34” to 212” square drive
  • 360˚ x 180˚  hydraulic swivel
  • 360 degree adjustable reaction arm
  • Small nose radius for minimal clearance lightweight
  • Aircraft grade aluminium body torque accuracy +/- 3%
  • Dual pawl system prevents ‘lock on’



Product Data Sheet
CLICK HERE to view / download product data sheet
