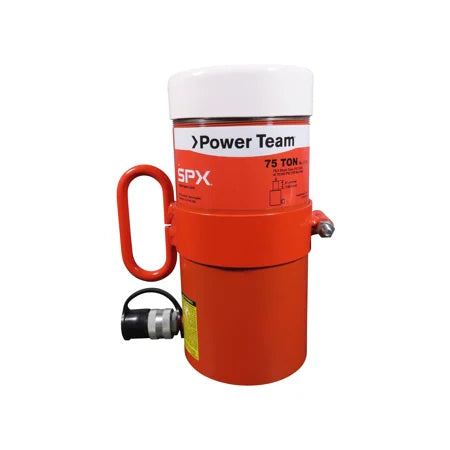

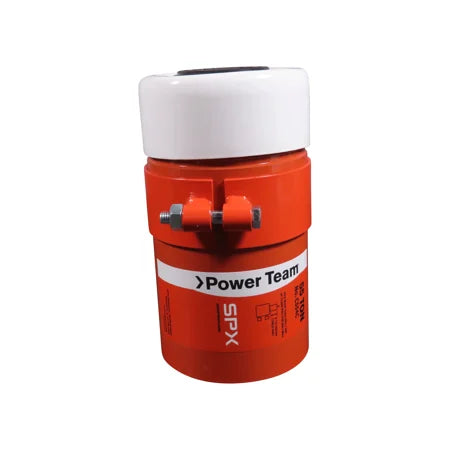

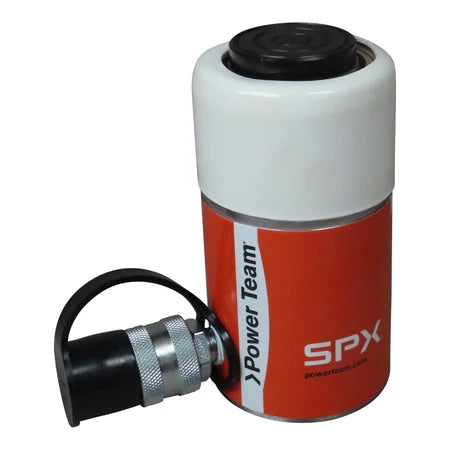

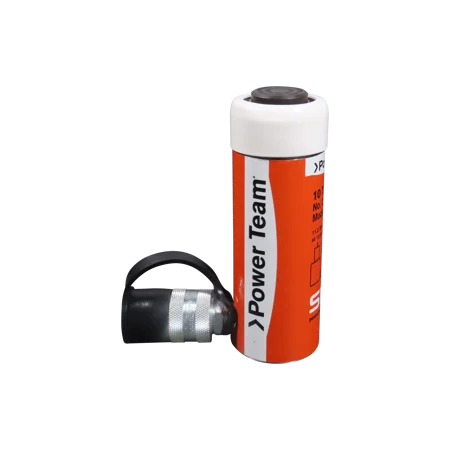

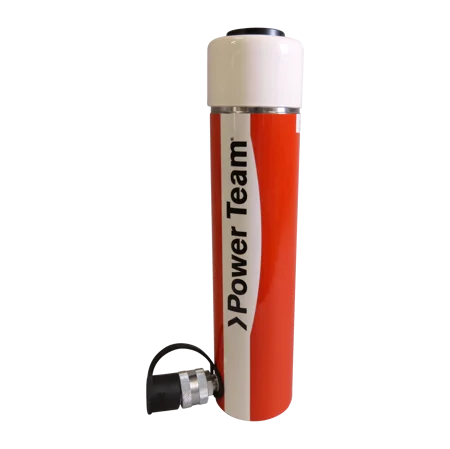

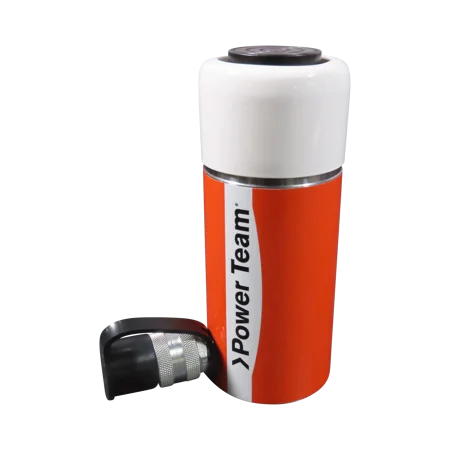

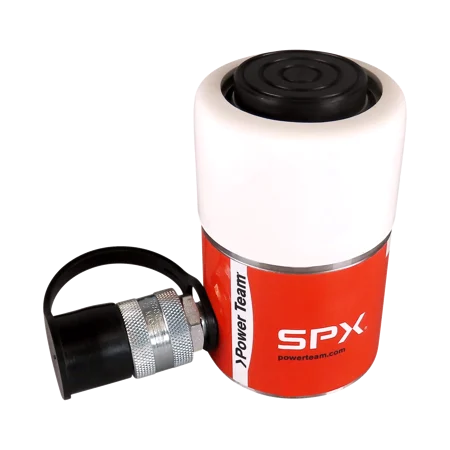

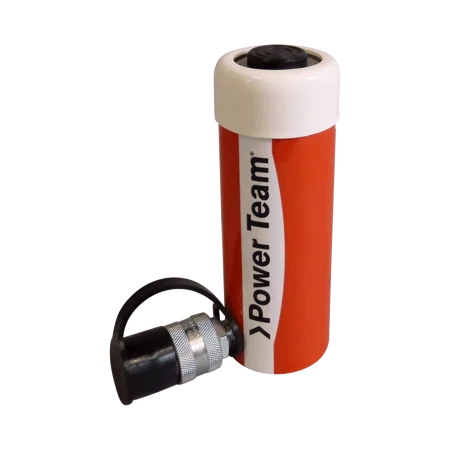

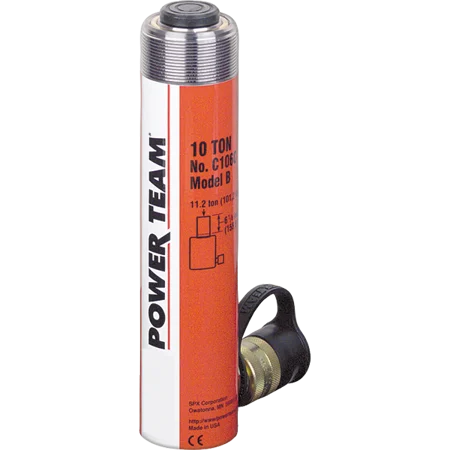

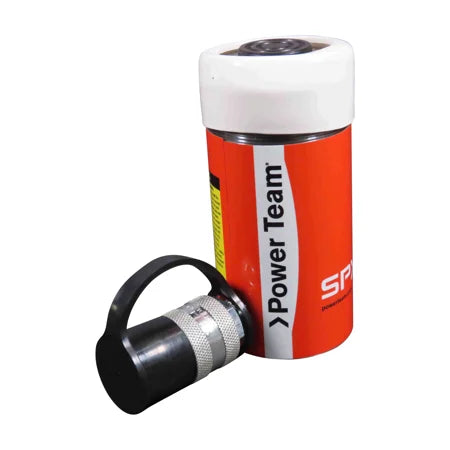

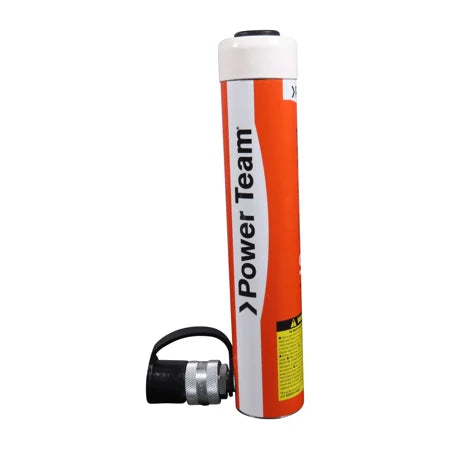

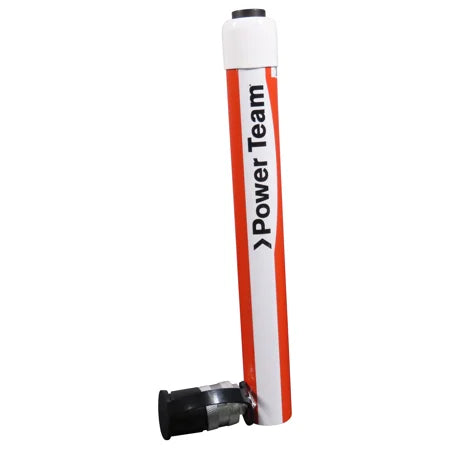

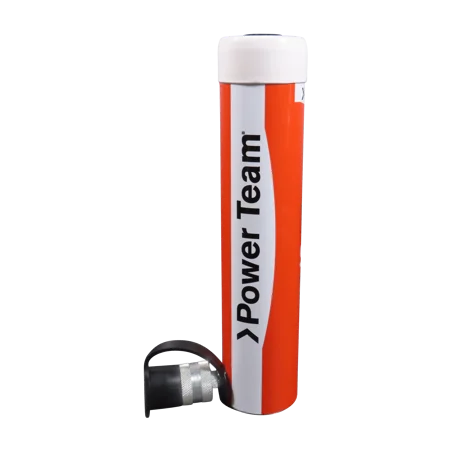

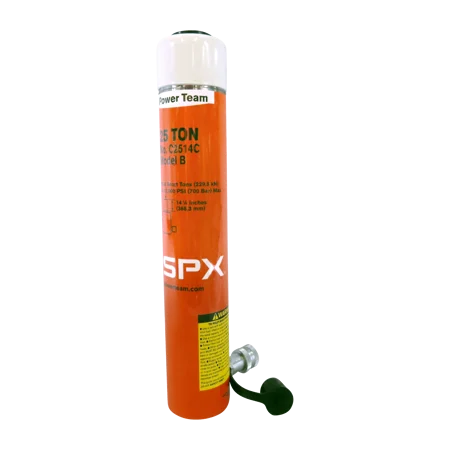

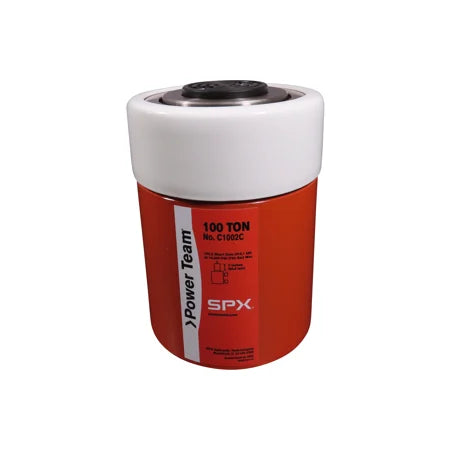

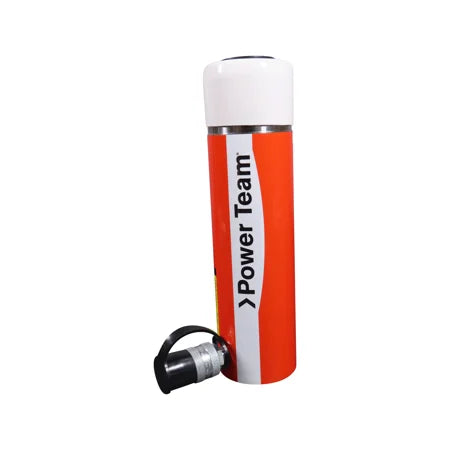

Power Team C-Series General Purpose Hydraulic Cylinders

Model

REQUEST A QUOTE

Need more info?

To download the product datasheet, please see the description below. For guidance or more information, contact our friendly sales team.

Description

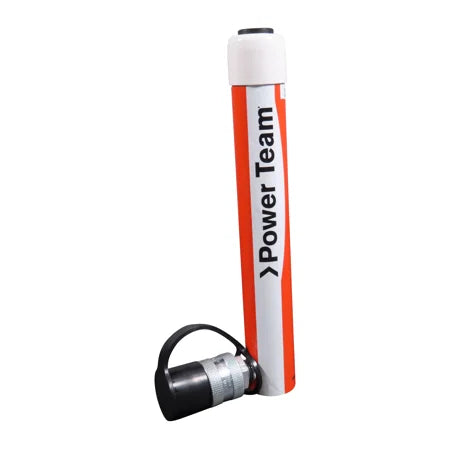

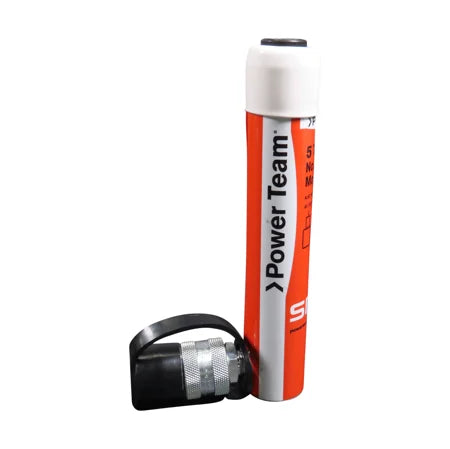

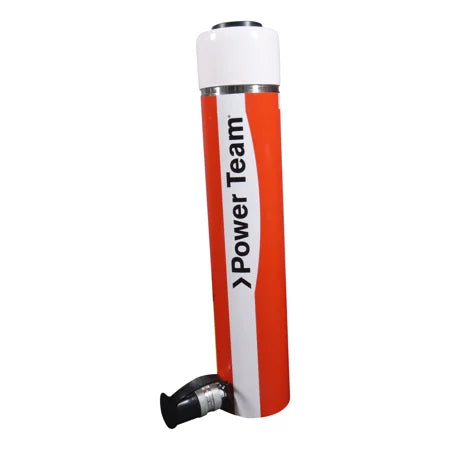

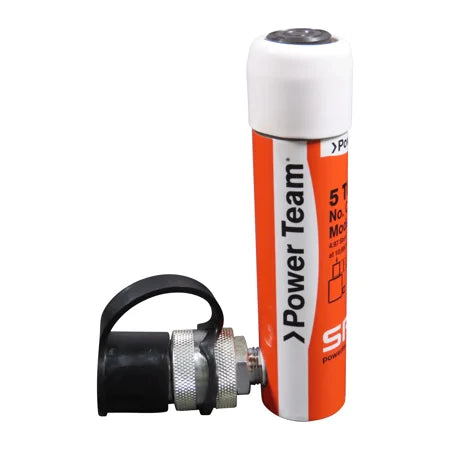

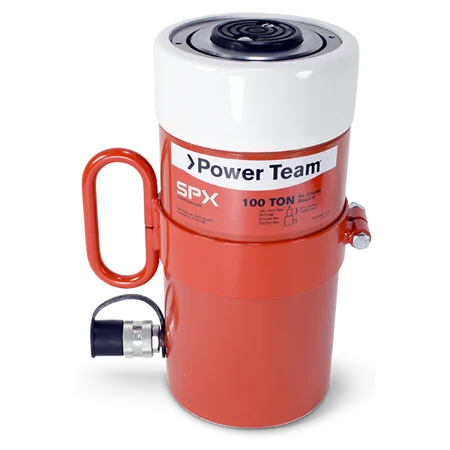

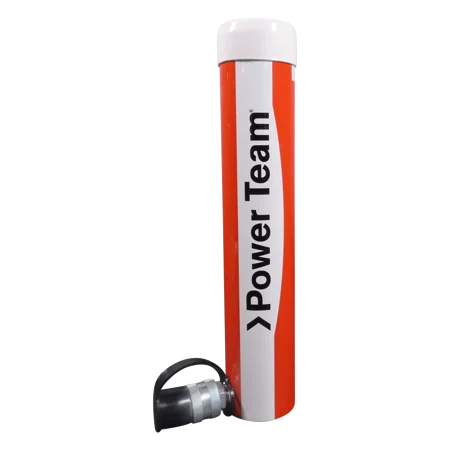

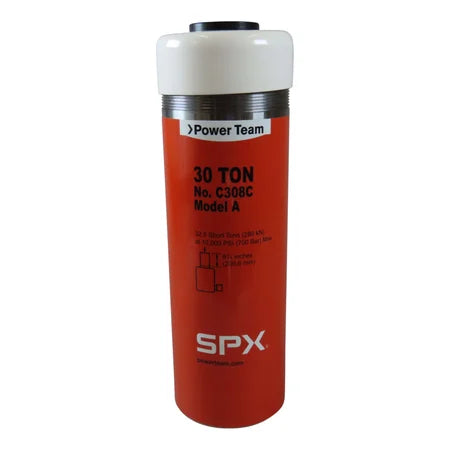

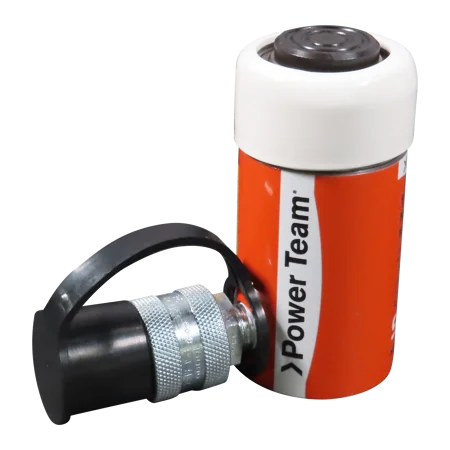

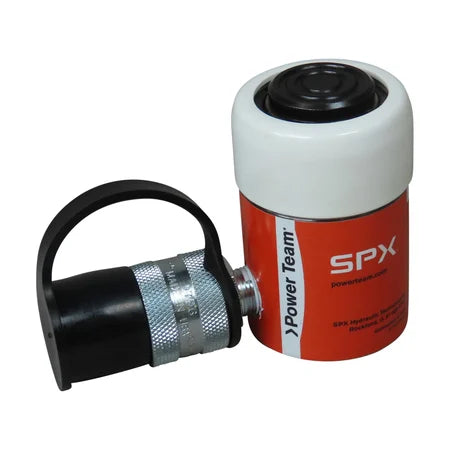

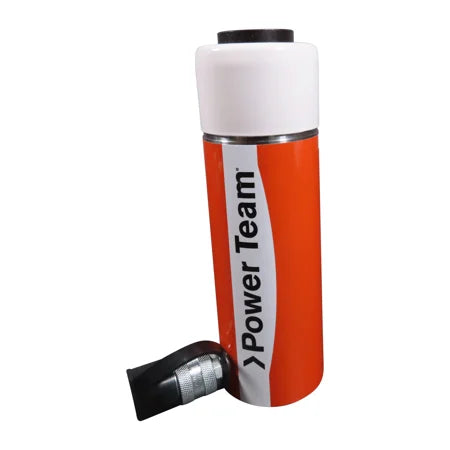

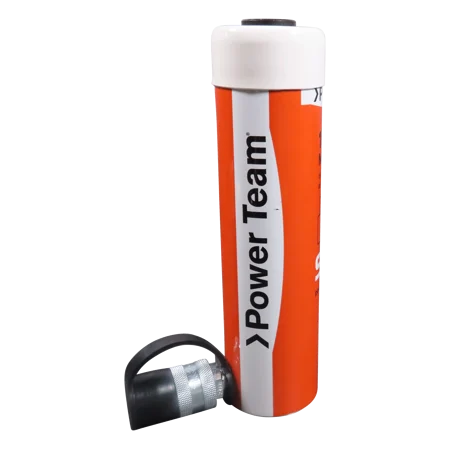

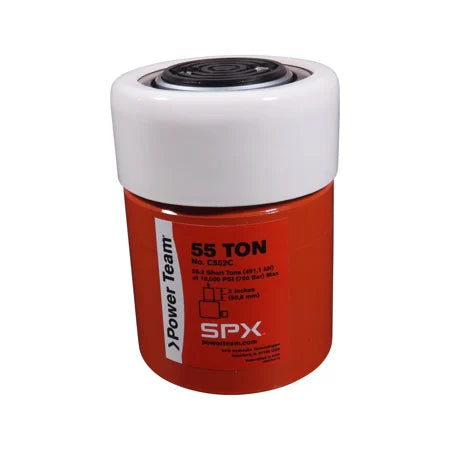

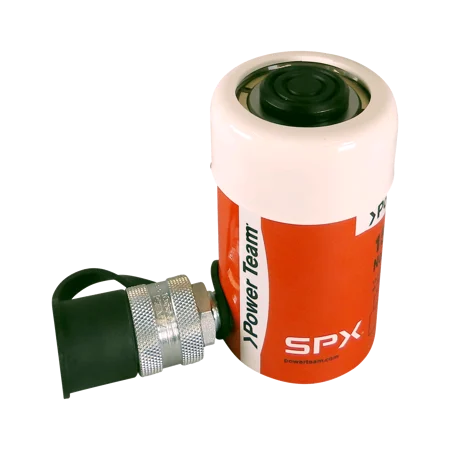

Power Team C-Series General Purpose Hydraulic Cylinders provide controlled, high-force lifting and pushing across demanding industrial, construction and maintenance applications.

Featuring a single-acting, spring-return design, the C-Series combines rugged steel construction with a chrome-plated piston rod for reliable operation in harsh working environments. An aluminium-bronze bearing helps reduce wear caused by off-centre loads, while the heavy-duty return spring supports fast piston retraction and extended service life.

Available in capacities from 5 to 100 tons and with a wide selection of stroke lengths, the range allows the cylinder to be matched to the force, travel and space requirements of each application.

Key features

  • Single-acting hydraulic operation with spring return
  • Capacities available from 5 to 100 tons
  • Multiple stroke lengths for different lifting and pushing requirements
  • Solid steel cylinder body for durability
  • Chrome-plated piston rod for wear and corrosion resistance
  • Aluminium-bronze bearing helps minimise wear from off-centre loads
  • Heavy-duty return spring supports fast piston retraction
  • Threaded cylinder collar simplifies mounting and fixturing
  • Removable thread protector helps prevent damage during transport and storage
  • Mounting holes included as standard on models up to 55 tons
  • Compatible with a range of Power Team cylinder accessories
  • Supplied with a 3/8-inch NPTF female half coupler
  • Maximum operating pressure of 10,000 psi / 700 bar
  • Designed to comply with ASME B30.1 requirements

Available range

Power Team C-Series cylinders are available in:

  • 5, 10, 15, 25, 55 and 100-ton capacities
  • Stroke lengths from approximately 25 to 337 mm
  • A variety of retracted and extended heights
  • Models suited to general lifting, pressing, pushing and positioning tasks

Selecting the correct cylinder depends on the required capacity, stroke, available installation space, mounting arrangement and hydraulic pump capacity.

Applications

  • Heavy equipment maintenance
  • Industrial lifting and positioning
  • Pressing and assembly work
  • Construction and infrastructure projects
  • Mining and resources maintenance
  • Pipeline and energy projects
  • Shutdown and turnaround work
  • Workshop and field repairs

Selection note

Cylinder capacity, stroke, mounting requirements and pump oil capacity should be confirmed before selection. Power Team recommends operating within 80% of the cylinder’s rated capacity and stroke to support safe, reliable performance. Contact PSSS for assistance selecting a suitable cylinder and hydraulic pump configuration.
