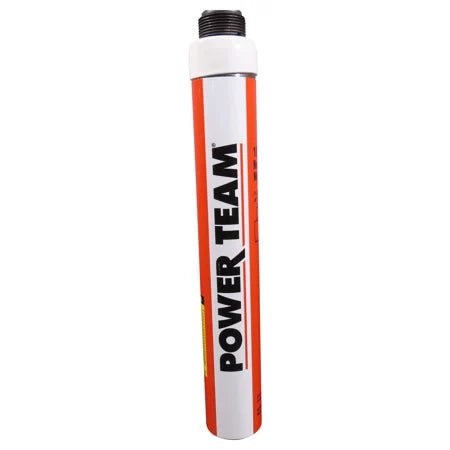

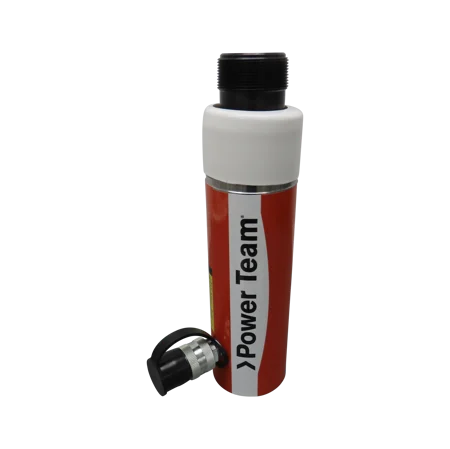

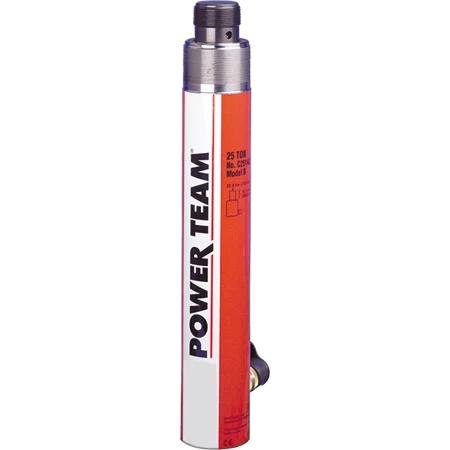

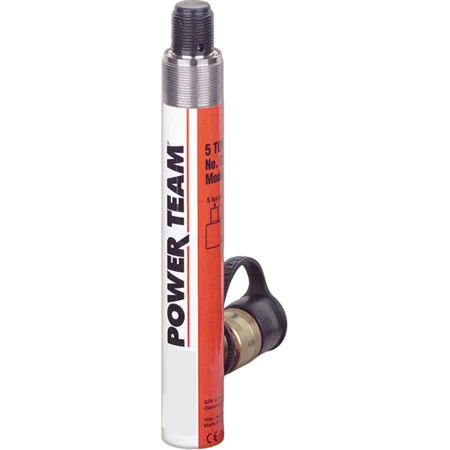

Power Team CBT-Series Threaded-End Hydraulic Cylinders

Model

REQUEST A QUOTE

Need more info?

To download the product datasheet, please see the description below. For guidance or more information, contact our friendly sales team.

Description

Power Team CBT-Series Threaded-End Hydraulic Cylinders provide versatile hydraulic force for lifting, pushing, mounting and specialised fixturing applications.

Featuring threaded cylinder collars, piston rod ends and internally threaded bases, CBT-Series cylinders can accommodate a variety of accessories and adapters. This allows the cylinders to be integrated into specialised fixtures and application-specific hydraulic arrangements.

The single-acting, spring-return design provides controlled hydraulic extension followed by automatic piston retraction when hydraulic pressure is released. Available in capacities from 5 to 25 tons, the range offers multiple stroke lengths to suit different operating and installation requirements.

Key features

  • Single-acting hydraulic operation with spring return
  • Capacities available from 5 to 25 tons
  • Threaded cylinder collar for flexible mounting
  • Threaded piston rod end accommodates compatible accessories
  • Internally threaded base supports specialised mounting arrangements
  • Removable threaded piston rod cap
  • Factory accessories can be fitted without derating cylinder capacity
  • Supplied with a Power Team 9796 3/8-inch NPTF female half coupler
  • 3/8-inch NPTF hydraulic oil port
  • Maximum operating pressure of 10,000 psi / 700 bar
  • Designed for industrial lifting, pushing and fixturing applications
  • Complies with ANSI/ASME B30.1 safety requirements

Available range

Power Team CBT-Series cylinders are available in:

  • 5, 10 and 25-ton capacities
  • Stroke lengths from approximately 133 to 362 mm
  • Multiple mounting and accessory configurations
  • Compact and extended-stroke models

Selecting the correct model depends on the required force, stroke, mounting arrangement, accessory configuration and available installation space.

Applications

  • Specialised hydraulic fixtures
  • Industrial lifting and positioning
  • Pushing and pressing operations
  • Equipment maintenance and repair
  • Workshop and field applications
  • Pipeline and energy projects
  • Mining and resources maintenance
  • Shutdown and turnaround work
  • Applications requiring threaded accessories or adapters

Selection note

Cylinder capacity, stroke, mounting threads, accessories and hydraulic pump capacity should be confirmed before selection. Contact PSSS for assistance configuring a suitable CBT-Series cylinder and hydraulic power arrangement.
