180 & 200mm Hydraulic Squeeze Off Tool (63-180/200mm)


Need more info?

To download the product datasheet, please see the description below. For guidance or more information, contact our friendly sales team.

63-180/200mm PE Pipe Squeeze Off

Available for Sale

Squeeze-off tools are used to halt the flow of fluid or gas in a pipeline, allowing for repairs without the need for permanent modifications.

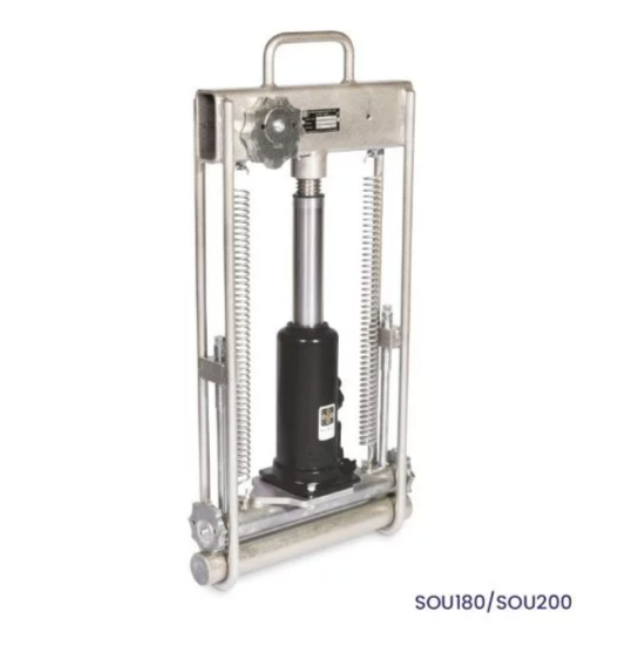

The SOU180 & SOU200 are used to limit the flow in PE pipe.

The units are fitted with safety check screws to prevent accidental release and also incorporate a jack spring return mechanism. ‘Pipe stops’ are used on the units for each diameter/SDR combination thus ensuring the optimum ‘Squeeze gap.'

Key Features:
  • Powerful 16t hyrdaulic jack
  • Integral safety check screws/lock off bars
  • Incorporated spring jack release mechanism
  • CNC machined multisided stops
  • Long service life

As standard the market leading SOU200 comes complete with stop sets to suit SDR11 and SDR17.6. One set will be a fixed to the bottom beam ready for use and the other will be securely attached to the Squeeze Off frame crossbar.

Additional stop sets can be purchased for the unit, please contact our sales team to discuss your requirements further.

Squeeze Off Applied Marker Tape identifies when PE pipe has been squeezed and helps prevent re-squeeze.

Click here to download our Squeeze Off Tools Specification Sheet.


PSSS offers a wide variety of HDPE Pipe Tooling & Machinery. Click here to view the full range.
