PipePillo® Structured Pipeline Support
PipePillo® Structured Pipeline Support
Available for Sale

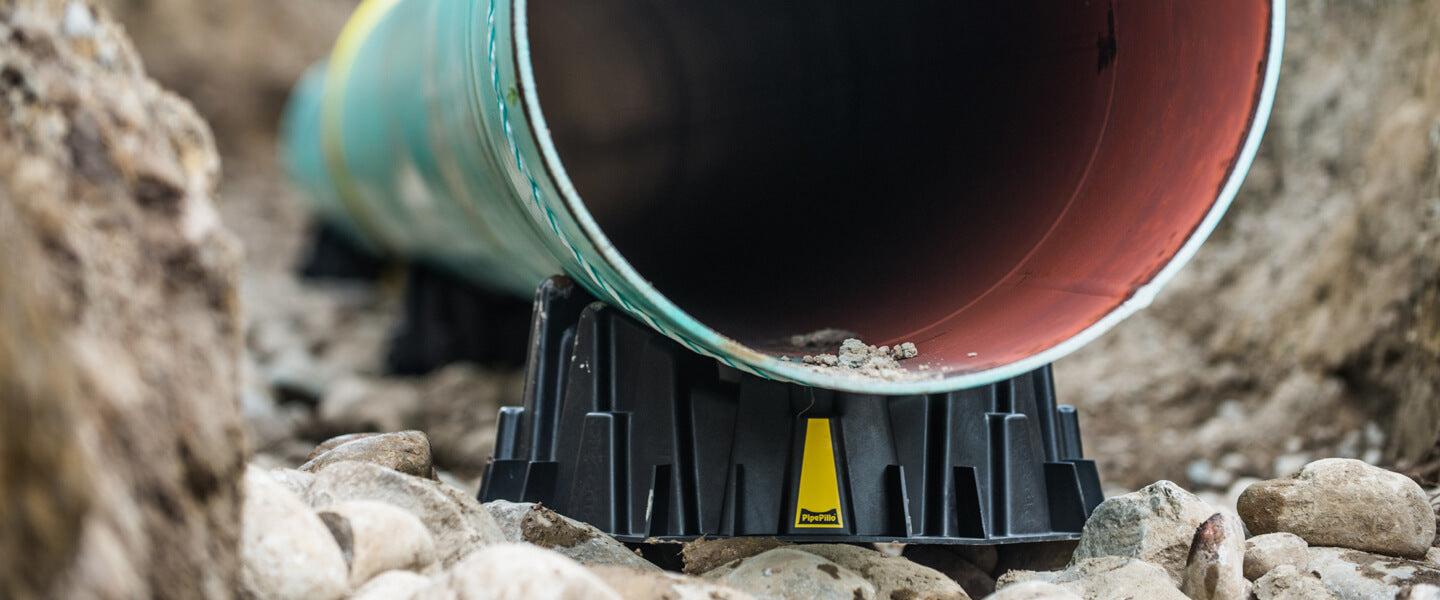

PipePillo® pipeline supports are a high-performance structured pipeline pillow (SPP) designed to permanently support fully-loaded pipelines from the rocky trench bottom. It provides permanent support and is the only engineered solution replacing foam, sandbags and pad dirt.
Available for pipe diameters from 4″ to 48″ O.D.
Contact us for a spacing estimate.

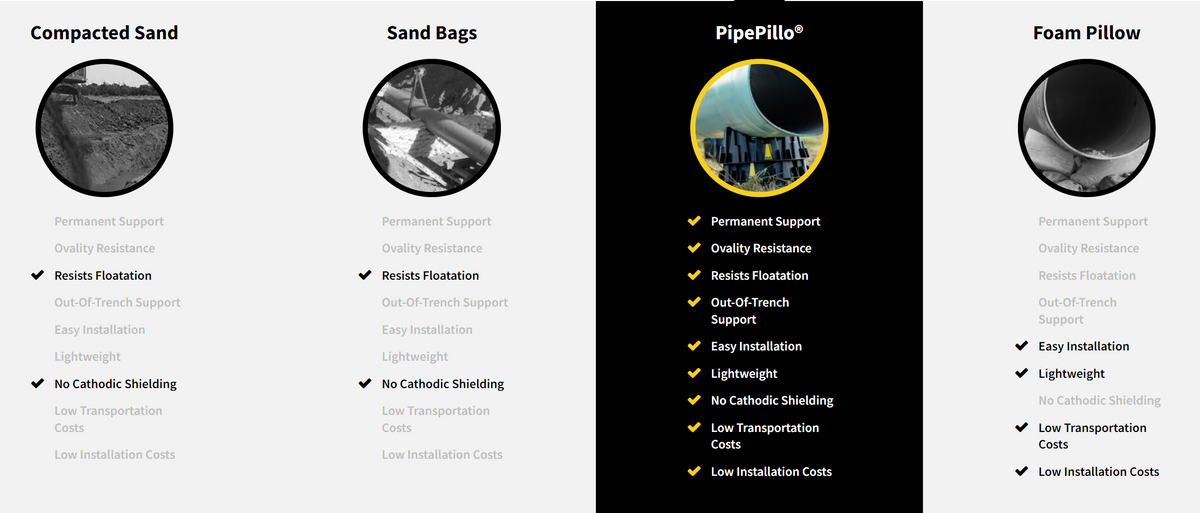

Key Features:
- Permanent Support
- Ovality Resistance
- Resists Flotation
- Out-Of-Trench Support
- Easy Installation
- Lightweight
- No Cathodic Shielding
- Low Transportation Costs
- Low Installation Costs
Additional Info:
PipePillo® structured pipeline supports are manufactured from high strength polypropylene resins which are environmentally inert yet softer than pipeline coatings. In addition, their 90 degrees of support limit ovality and their many cavities support cathodic protection systems.

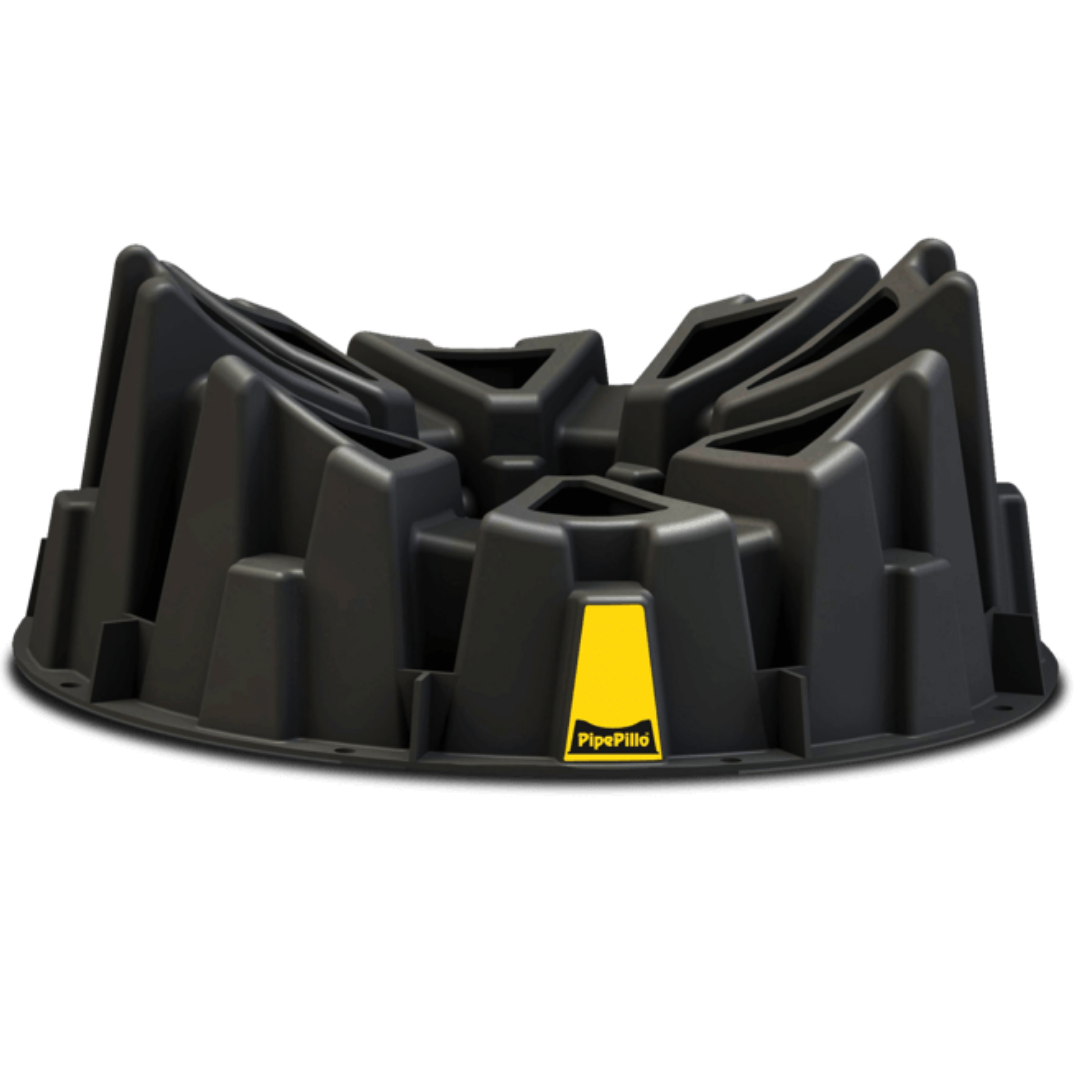

The design incorporates a patented dual frustoconical shape which is able to transfer extreme loads effectively through to consolidated or virgin soil beneath. Contact us for a spacing estimate.

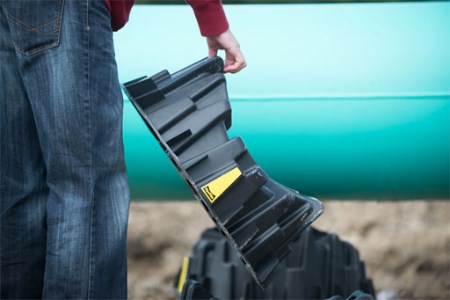

PipePillo® structured pipeline supports are light enough to be manually handled, yet dense enough to resist flotation.
All PipePillo® structured pipeline supports have a rectangular center hole, which accommodates an installation rod (2×4) for positioned placement without workers in the trench. For deeper excavations, they can be strapped to the bottom of the pipeline prior to the pipe installation.
Stringing & Welding:

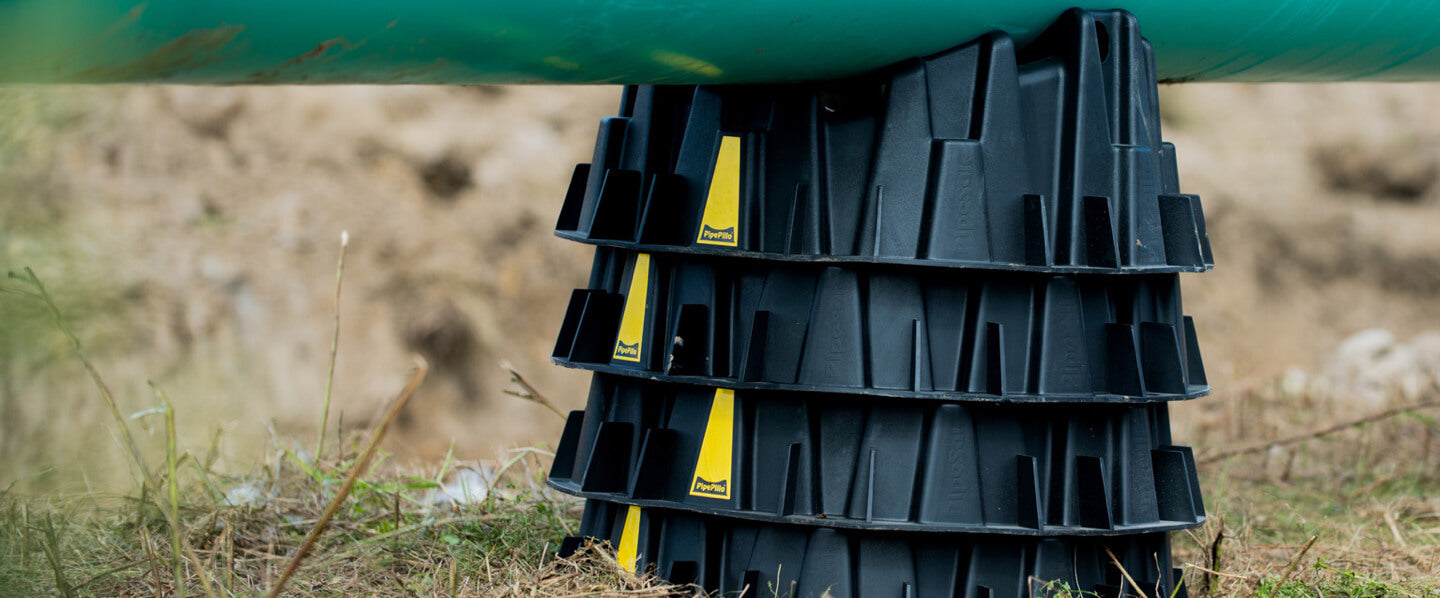

PipePillo® structured pipeline supports were designed for use both in and out of the trench. Outside the trench, PipePillo® pipeline supports are well-suited for use stringing and welding as single or multi-stacked supports. PipePillo® structured pipeline supports are lightweight and can be moved and stacked by a single worker. Reuse PipePillo® stackable pipeline supports on your next project or easily place in the trench for permanent pipeline support.
Integrity Digs:
PipePillo® structured pipeline supports can be used as an effective means to support exposed pipelines during and following integrity digs. Achieve additional height by stacking multiple PipePillo® supports, limiting the requirement for compacted soil beneath the pipe.
Pipe Inspection and Fabrication:
PipePillo® structured pipeline supports are excellent for use in the shop during pipe inspection and fabrication. Their versatile and adjustable stacking heights make them an indispensable piece of equipment, offering your pipe a stable resting place and a full 90 degrees of support.
Pipe Storage and Transportation:
PipePillo® structured pipeline supports were engineered to safely hold up to 36,287 kgs and provide a full 90 degrees of support, making it an ideal solution for pipe storage and transportation. Help protect your pipe by limiting ovality, improving drainage, and lowering costs by having PSSS design your pipe storage solution using the versatile PipePillo® structured pipeline support.
Spacing Estimate:
PSSS is here to assist you. We will calculate your required spacing, offer design input, and provide information for your specification documents or even the most challenging pipeline projects or custom applications. Contact us for your project spacing requirements.
Click here to download our PipePillo® Structured Pipeline Support Specification Sheet.
Click here to view video & learn more about PipePillo® Structured Pipeline Support.
